TPS digital cutting machine in packaging industry replaces traditionally manual package designing and sample making with modern craftworks like cutting, creasing, which saves research and developing time. Sample-making is fast and of high quality, which improves carton manufacturer’s competitiveness in market. The machine is suitable for small quantity production for self using or fulfilling sample-making task that is of high profits and small quantity.
Equipment features:
1.TPS Technology researched and developed CAM software independently which prevents over-cutting at inner angles to recover graphic outline maximally.
2.Intelligent tabletop mapping function: the flatness of tabletop is measured with tabletop mapping by the high-precision height detector, and the tabletop can be height-compensated in real time by the TPS software to ensure perfect cutting result.
3.Realize matching the cut shapes of front and back sides intelligently according to the material edges.
4.Automatic tool calibration: Quick and effortless tool exchange thanks to the fiber laser tool-tip height sensor. It accurately and automatically calibrates the working depth for different tools and greatly contributes to simple operation.
5.Quick-replacement universal modules make simple and efficienct operation and save tool-changing time.
Cutting material in packaging industry
TPS digital cutting machine is equipped with advanced tool module quick replacement, which is strongly universal, easy, convenient and handy.
-
Universal tool module
-
Universal tool module and tool unit
-
High performance high speed Milling Router
-
Multi-angle V-Cut tool
-
Creasing tool
-
Wheel-cut tool
-
Electric Oscillating knife
-

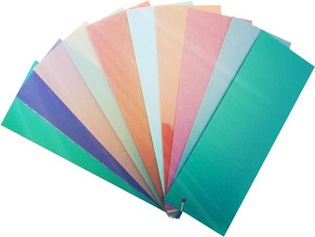

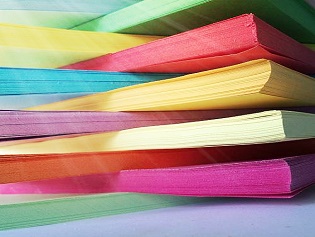

Cardboard
Color box packaging, paper bag, creative sample
Tool selectionDrag tool, oscillating knife, creasing tool
-
Corrugated board
Color box packaging, carton, POP display stand
Tool selectionOscillating knife, creasing tool
-

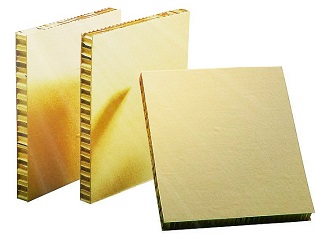

Honeycomb board
Protective packaging, display stand, creative works
Tool selectionOscillating knife, V-cut tool
-
Grey board
Gift box, packaging, file
Tool selection
storage boxOscillating knife, V-cut tool
-
ABS
Packaging, display stand
Tool selection
POP billboardDrag tool, router
-

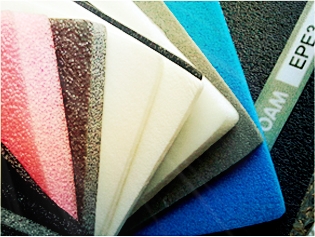

Foam material
Package lining, protective packaging, sandwich material
Tool selectionDrag tool, router
-

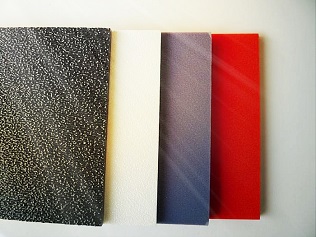

Plastic board
Gift box, file, light box
Tool selection
AD displayDrag tool, oscillating knife
-

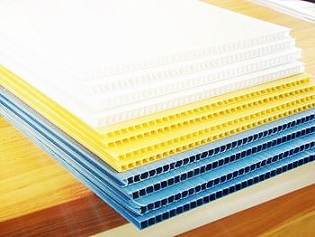

PP plastic hollow plate
Packing box, fender
Tool selection
display standDrag tool, oscillating knife
Hardware advantages of cutting machine
Quick replacement tool modules
TPS digital cutting machine is with advanced, standard and universal tool modules for replacing tools easily and quickly. It is very handy during processing a wide variety of materials.
Multiple tools
Full range of tools: router, electric oscillating knife, V-cut tool, drag tool, creasing tool, kiss-cut tool, plotting pen etc. Different tools for different materials.
Magnalium Vacuum Absorption Tabletop
The tabletop is durable and non-deforming with vacuum absorption design: strong wind strong suction.(easy for absorbing small items)
Vacuum cleaning pipe and base stand
The whole cutting process is without smell and dust, which is good for workers’ health and up to the environmental protection standard.
European design style
Under the idea of European industrial equipment design, the machine is top-end, stylish and technological on the premise of ensuring machine performance.
Welding integrated base stand
The welded frame is more stable, more rigid and warp-proof.
Quick tool replacement module
Universal module can be combined with tools freely, realizing quick replacement of tools.
Full range of tools
Router, electronic oscillating knife, V-cut tool, drag tool, creasing tool, kiss-cut tool, wheel-cut tool(different tool for different material)
Honeycomb aluminum tabletop
It is durable and undeformable with vacuum absorption that has strong wind and strong suction.(easy for sucking small items)
Tabletop belt
It is made by imported material, durable, has good air permeability and a long service life, which reduces costs to minimum.
Sealed dust-proof design
Sealed dust-proof design reduces the failure rate of machine and extends its operating time.
Emergency stop buttons at 4 corners
If there is an error operation, press the button to stop the machine to reduce loss.
Interference immunity
Because of the complex electromagnetic environment, machine is especially equipped with anti-interference operating screen in case of blurred screen.
Safe operating environment
Infrared automatic induction safety device will maximally ensure operators’ safety while working and at the same time avoid material waste.
Rolling media feeder
The guide roller feeding device ensures that the feeding process in cutting is smooth and fluent. It can be set according to roll material’s specifications and features to enhance both output and cutting quality.
Software features
TPS digital cutting machine adopts self-researched and self-developed CAM software, in which users’ needs are perfectly considered. It is a full-automatic intelligent cutting system that integrates performance, speed and quality, which can realize various craftworks like full cutting, half cutting, boring and milling, punching, creasing, marking etc. Easy operation, multiple and practical functions, together with tool modules quick replacement can meet customized needs of users.
Automatic tool calibration
Tool or bit exchange is fast and effortless thanks to the fiber laser tool tip height sensor. It accurately and automatically calibrates the working depth for different tools and greatly contributes to simple operation.
High definition CCD camera
The high definition CCD camera can realize automatic positioning and cutting on various materials, which eradicates problems like inaccurate manual positioning and print deformation.
Automatic switch of two heads
The cutting process realizes automatic switch of two heads and satisfies different craftwork needs of different materials.
Vacuum absorption
With strong wind and strong suction, the size of vacuum absorption area is selectable, greatly reducing electricity consumption.
Material automatic recognition
Material thickness can be automatically measured instead of manual measurement, then it will be recorded into the software.
Operating interface
The high-accuracy distance detector will detect tabletop evenness and real-timely correct it through software to realize accurate cutting.
Control system
High performance multi-axial motion control system is adopted, which is convenient and economical to maintain and provides personalized development service.
Working pattern
The servo motor drives screw and can connect with computer to preset and store knife depth and knife pressure.
Image design software integration
It is compatible with software like ArtiOSCAD, AutoCAD, Coreldraw, simplifying workflow of designers.
Overcut optimization
The self-researched and self-developed CAM software will optimize the overcut phenomenon, maximally restore graphic contour and realize perfect cutting effect.
Automatic tool calibration
Tool or bit exchange is fast and effortless thanks to the fiber laser tool tip height sensor. It accurately and automatically calibrates the working depth for different tools and greatly contributes to simple operation.
Graphic positioning
High definition CCD camera and edge automatic recognition can realize automatic positioning on various materials and match the front side with back side, eradicating inaccurate manual positioning, print deformation etc. Together with automatic transmitting function, it allows efficient and accurate cutting on large format graphic, enhancing both output and cutting quality.
Matching cut at front and back
This function, together with edge recognition, will swiftly recognize material edges, position and realize the graphic cut at front matching the back side one.
Data interface
The internet interface allows updating and maintenance remotely with fast transmitting speed and long distance. It can transmit with multiple computers simultaneously.
Material thickness automatic recognition
Material thickness will be automatically detected without manual measurement, then it will be recorded into the software.

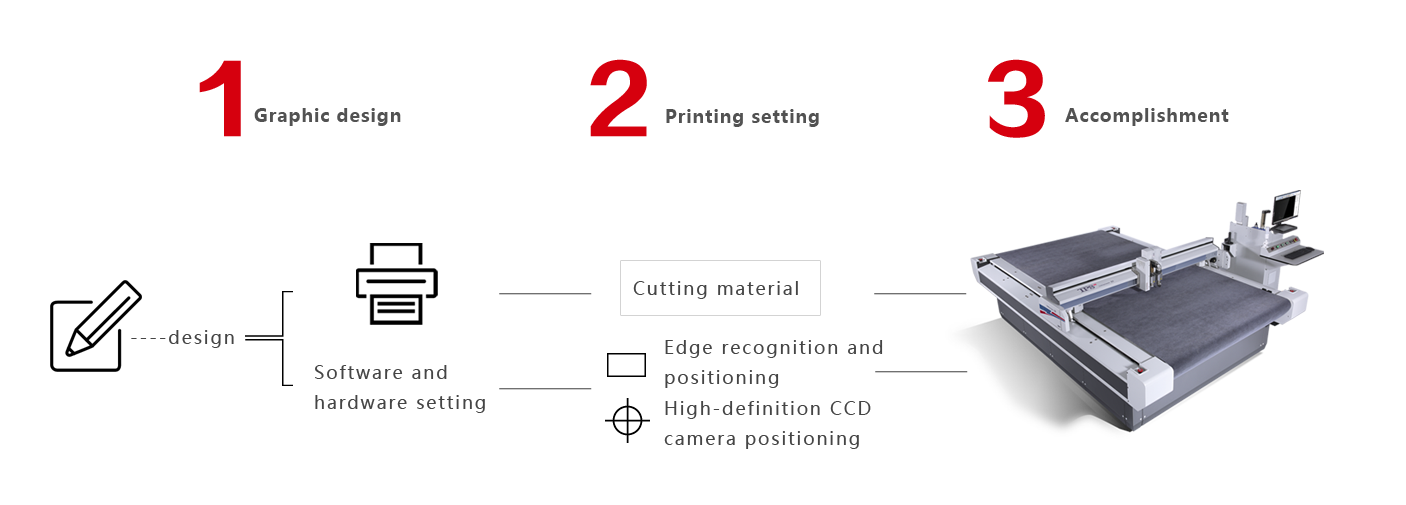

Cutting workflow diagram
Technical parameters
Main technical parameters of the machine
| Item： | Parameter: |
|---|---|
| Equipment power: | 2.5kw |
| Vacuum pump power: | 7.5kw |
| Voltage: | 380V 3 phase |
| Work area: | 1600x2500mm |
| Max. material size: | 1700x3000mm |
| Material max. processing height: | 50mm |
| Beam height: | 60mm |
| Max. processing speed: | 72m/min. |
| Servo motor qty: | 6pcs |
| Fixing method: | Welded integration |
| Cutting accuracy: | ±0.1mm |
| Positioning method: | High-definition CCD camera、Automatic edge recognition |
| Automatic media-feeding: | Yes |
| Applied material: | KT board, PVC foam board, PP, sticker, acrylic, corrugated board, honeycomb board, corrugated plastic, grey board, paper, leather, blanket, MDF, aluminum composite sheet, insulating board, fiber cloth, medium fiber board, flag fabric, textile fabric,etc. |
